Algemeen |
| Processormodel |
Intel Core i5 (12. Gen.) 12400 / 18 MB Intel Smart Cache, max. Turbo-Frequency 4.4 GHz) |
| Besturingssysteem |
Windows 11 Pro |
| |
Software |
| Voorgeïnstalleerde software |
30 Dagen testversie voor Microsoft® 365 nieuwe klanten. |
| |
Processor |
| Processorfamilie |
Core i5 |
| Aantal processorkernen |
Hexa-Core |
| Processor socket |
FCLGA1700 Socket |
| |
Geheugen |
| Intern geheugen |
8 GB |
| Geheugenlayout |
1 x 8 GB |
| Maximum intern geheugen |
64 GB |
| Kloksnelheid geheugen |
3200 MHz |
| Intern geheugentype |
DDR4 SDRAM |
| Geheugenslots |
2 |
| Geheugen form factor |
DIMM, 288-PIN |
| |
Opslagmedia |
| Totale opslagcapaciteit |
500 GB |
| HDD interface |
1x M.2 (Key M, PCIe 3.0 x4 mode/ SATA 6Gb/s), 4x SATA 6Gb/s ports |
| Soorten RAID |
Ondersteunt geen raid |
| SSD interfaces |
PCIe (NVMe) |
| SSD capaciteit |
500 GB |
| HDD capaciteit |
1 x 500 GB - SSD |
| Opslagmedia |
SSD M.2 |
| |
Prestatie |
| Markt positionering |
Business - Slim Desktop |
| Type product |
Personal-Computer |
| Geluidsniveau |
22,2 dB Idle-Mode |
| Audio-uitgangskanalen |
8 kanalen |
| Chipset moederbord |
Intel H610 |
| Audiosysteem |
High Definition Audio |
| |
Design |
| Type behuizing |
Small Form Factor |
| Certificering |
Assemblierung volgens ISO9001 in Duitsland
Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC |
| Toetsenbord formaat |
Optioneel. Geen toetsenbord inbegrepen. |
| |
Toetsenbord |
| Aansluiting |
USB
PS/2 |
| |
Technische details |
| Land |
International |
| |
Inhoud van de verpakking |
| Meegeleverde accessoires |
Quick Install Guide, voeding, kabel, 2-delige standvoet |
| Taal toetsenbord |
Optioneel. Geen toetsenbord inbegrepen. |
| |
Uitbreidingsmodules |
| Uitbreidingsslots |
1x PCIe 4.0 x16 Slot, 1x PCIe 3.0 x1 Slot |
| |
Gewicht en omvang |
| Hoogte |
9.5 cm |
| Breedte |
34.1 cm |
| Diepte |
38 cm |
| Gewicht |
6 kg |
| |
Overige specificaties |
| Aantal drive bays |
1 voor toegankelijk - 13.3 cm ( 5.25 Slim-Format )
1 voor toegankelijk - 8.9 cm ( 3.5 Slim-Format )
1 intern - 8.9 cm ( 3.5 )
1 intern - 6,3 cm (2.5) voor SSD |
| Interface |
4x USB 3.2 Gen1 Type-A (2x voorzijde), 4x USB 2.0 (Type-A),1x DisplayPort 1.4, 1x HDMI 2.1, 1x D-Sub (VGA)
1x RJ45 LAN, 3x Audio jacks, 1 x PS/2
Optioneel: 1x COM |
| Compatibele besturingssystemen |
Windows 10, Windows 11 |
| Merk moederbord |
MSI PRO H610M-G |
| Type koeling |
Intel Boxed Laminar RM1 |
| Speciale eigenschappen |
Convertible Slim Desktop with lockable back-cover
Horizontal and vertical use

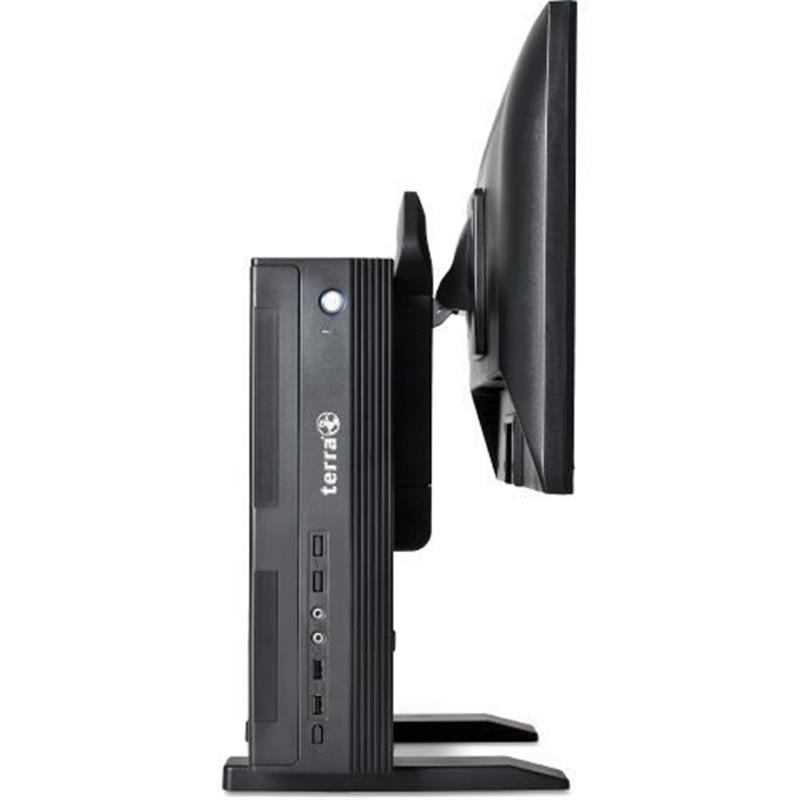

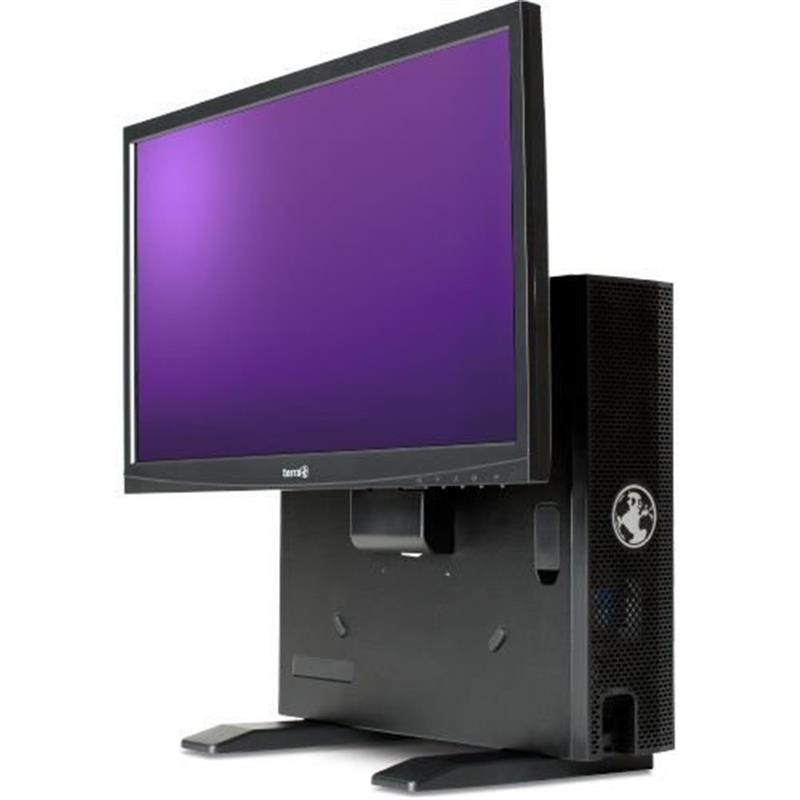

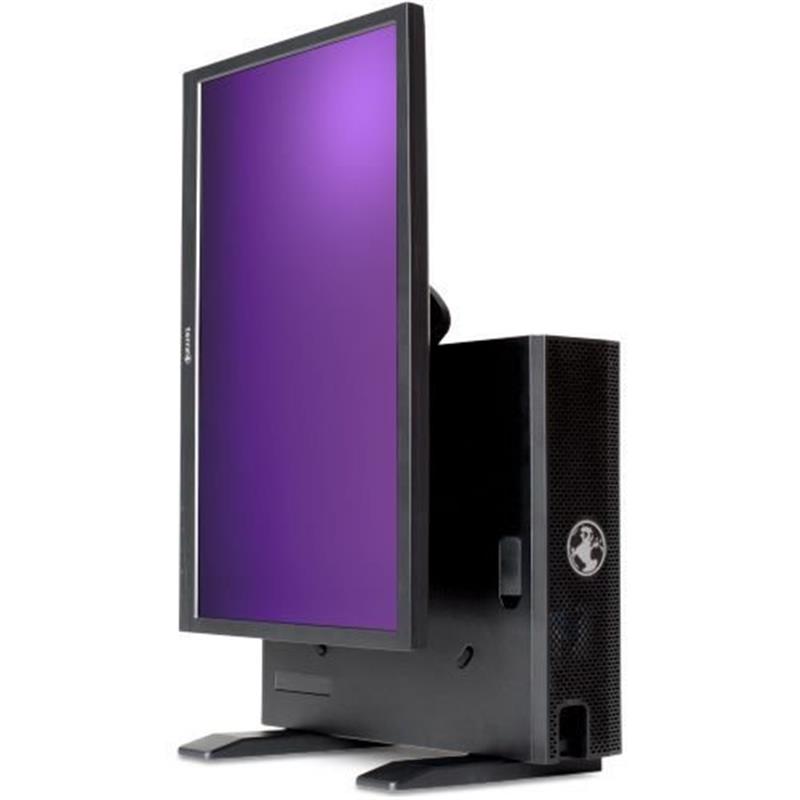

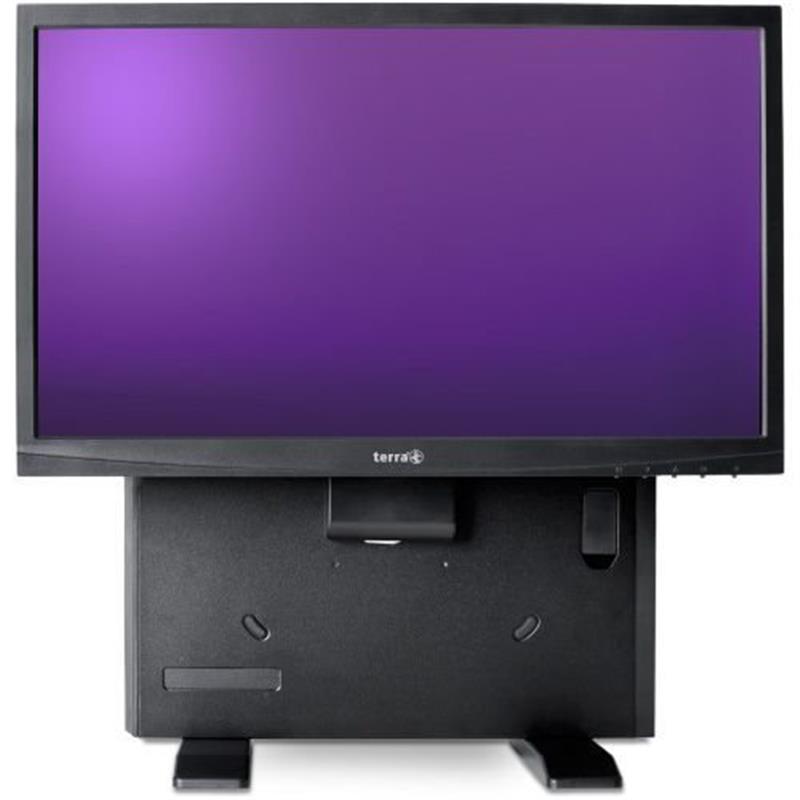

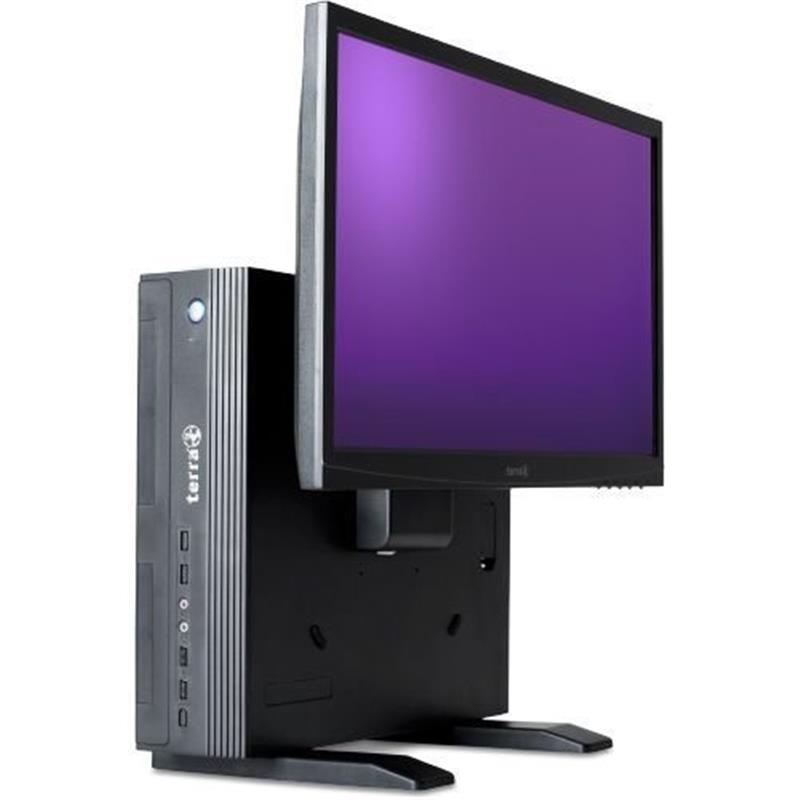

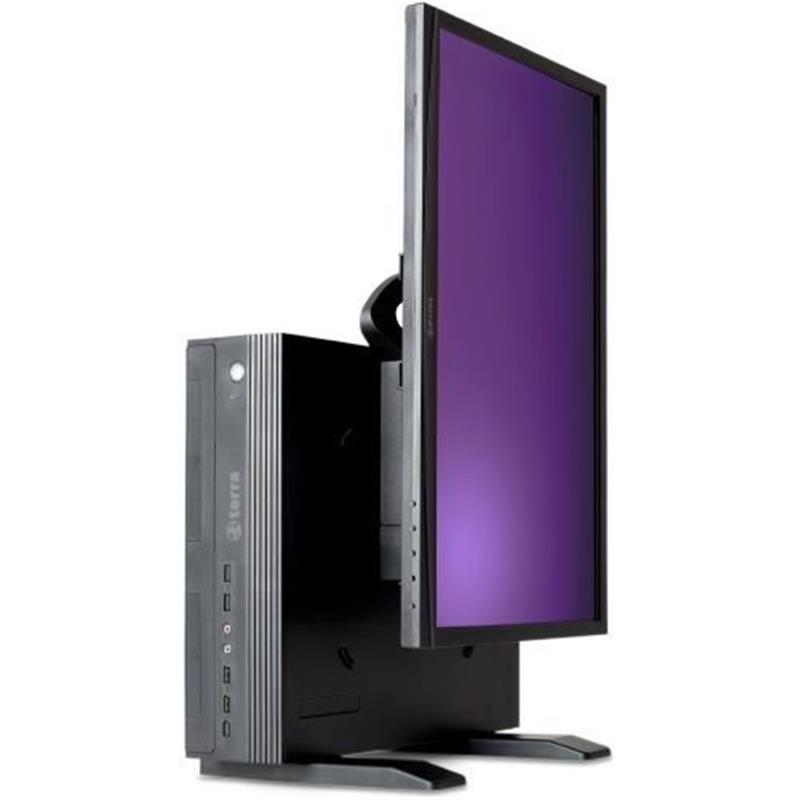

Optional: Standfoot for TFSs with VESA (75/ 100 mm) mount
Notice: Only cards low profile format
TPM 2.0 2x USB 3.2 Gen voorzijde
TPM 2.0
Secure Boot
Windows Autopilot ready |
| |
Muis |
| Inclusief muis |
TERRA Wheel Mouse optical |
| |
Grafisch |
| Geheugen ingebouwde grafische adapter |
Dynamisch |
| Maximale resolutie ingebouwde grafische adapter |
HDMI 2.1 max. 4K 60Hz
DP max. 1.4 4K 60Hz
VGA max. 2048x1280 60Hz |
| Grafische adapter |
Intel UHD Graphics 730 |
| On-board graphics adapter model |
Intel UHD Graphics 730 |
| Aantal displayports grafische adapter |
1x DP, 1x HDMI, 1x VGA
Ondersteunt Triple-Monitoring |
| |
Energie |
| Stroombron |
TFX voeding met 80 Plus Bronze, geschikt voor standaard gebruik max. 60 uur/week
82%,85%,82%@115V, 82%,85%,82%@230V = 80 PLUS BRONZE @ 115V |
| Stroomverbruik (in standby) |
Ø 1.1 Watt (S3 Mode, Suspend to RAM, WOL geactiveerd) / 0,25 Watt soft off (S5 mode) |
| Maximaal ingangsvermogen |
350 W |
| Voeding |
Ø 17 Watt Idle-Mode
Ø 79 kWh per jaar (TEC = Typical Energy Consumption) |
| AC-adapter ingangsspanning |
Wisselstroom 230 V ( 50Hz ) |
| |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) |
5 °C - 35 °C |
| Aanbevolen relatieve luchtvochtigheid bij gebruik |
10-75% (niet condenserend ) |
| |
Netwerk |
| Ethernet LAN |
RJ45 |
| LAN controller |
Intel I219V, WOL/PXE |
| Datalink-protocollen |
Ethernet
Fast Ethernet
Gigabit Ethernet |
| |
Optische drive |
| Soort optische drive |
DVD-brander |
| |
Invoerapparaat |
| Bewegingsdetectietechnologie |
Optical |
| Aansluiting |
USB
Opmerking: Toetsenbord optioneel verkrijgbaar. |
